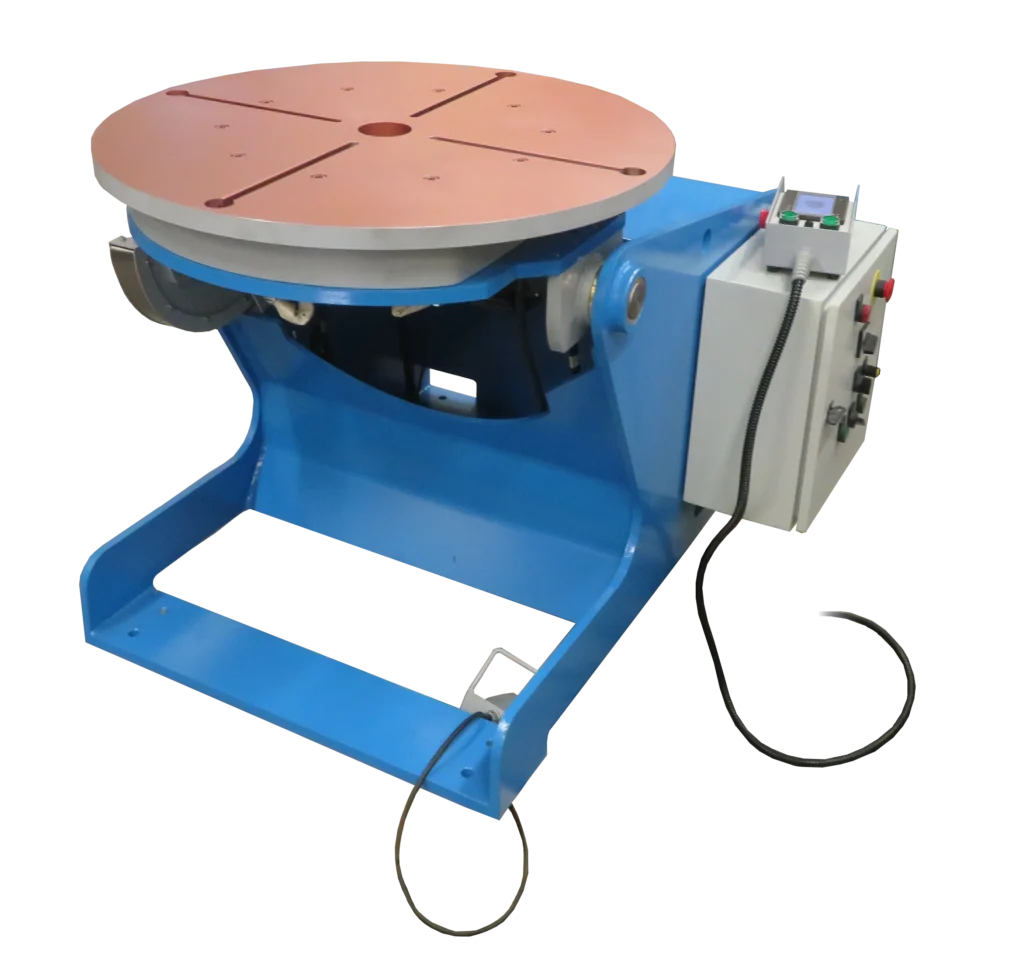

Welding Positioners WP

Positioning devices/Rotary tables and positioners

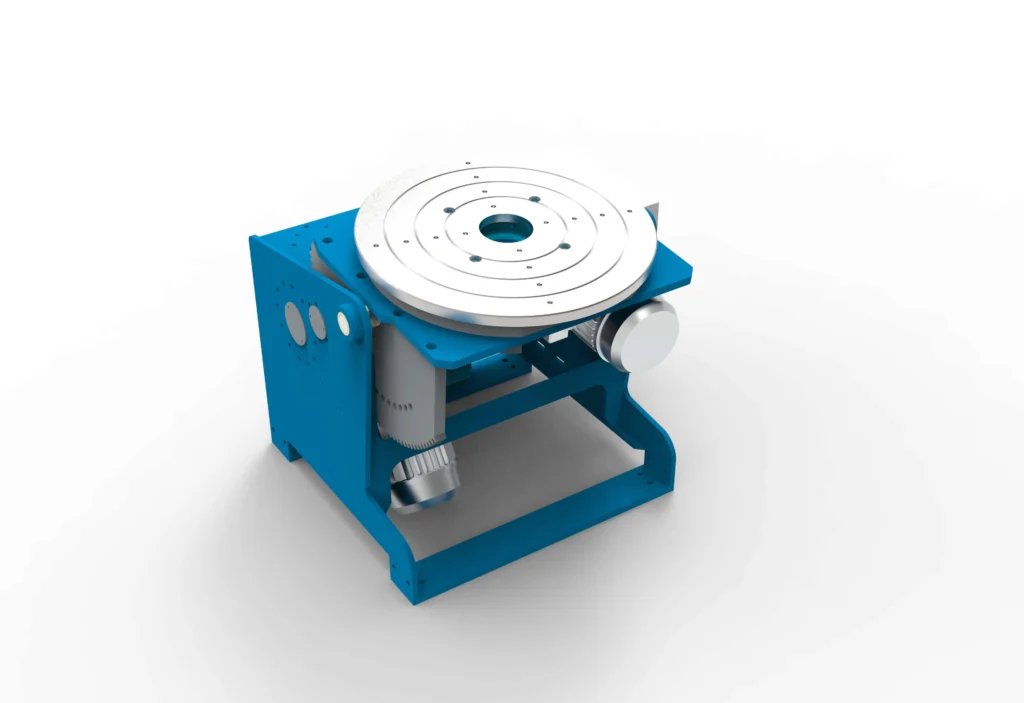

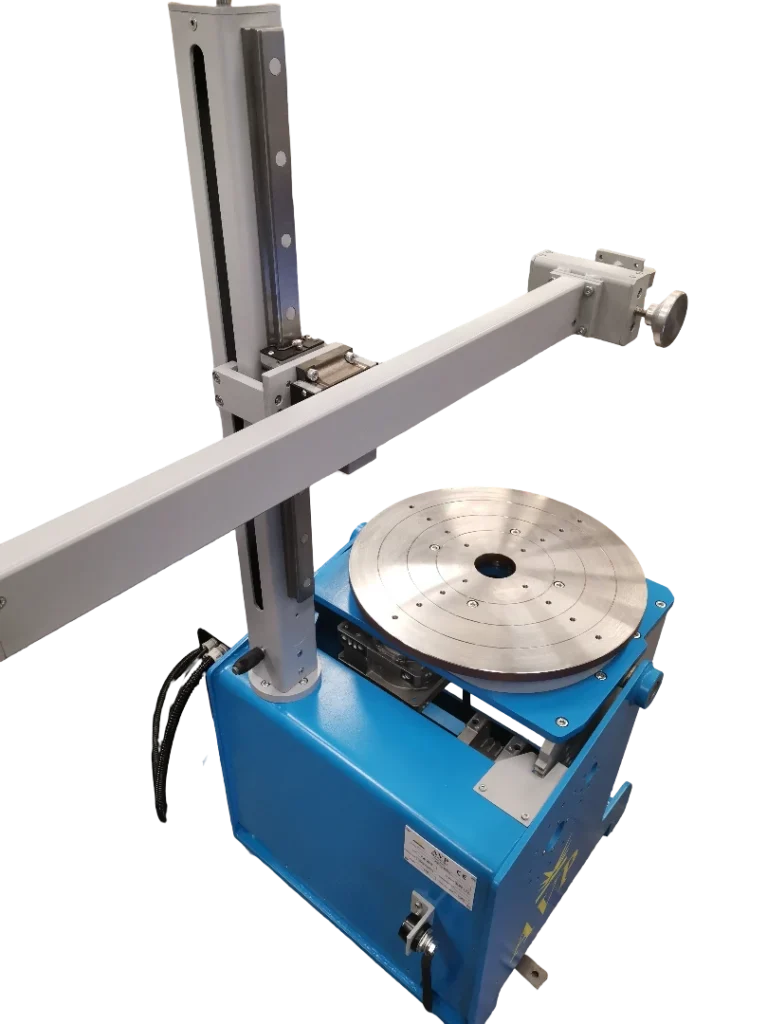

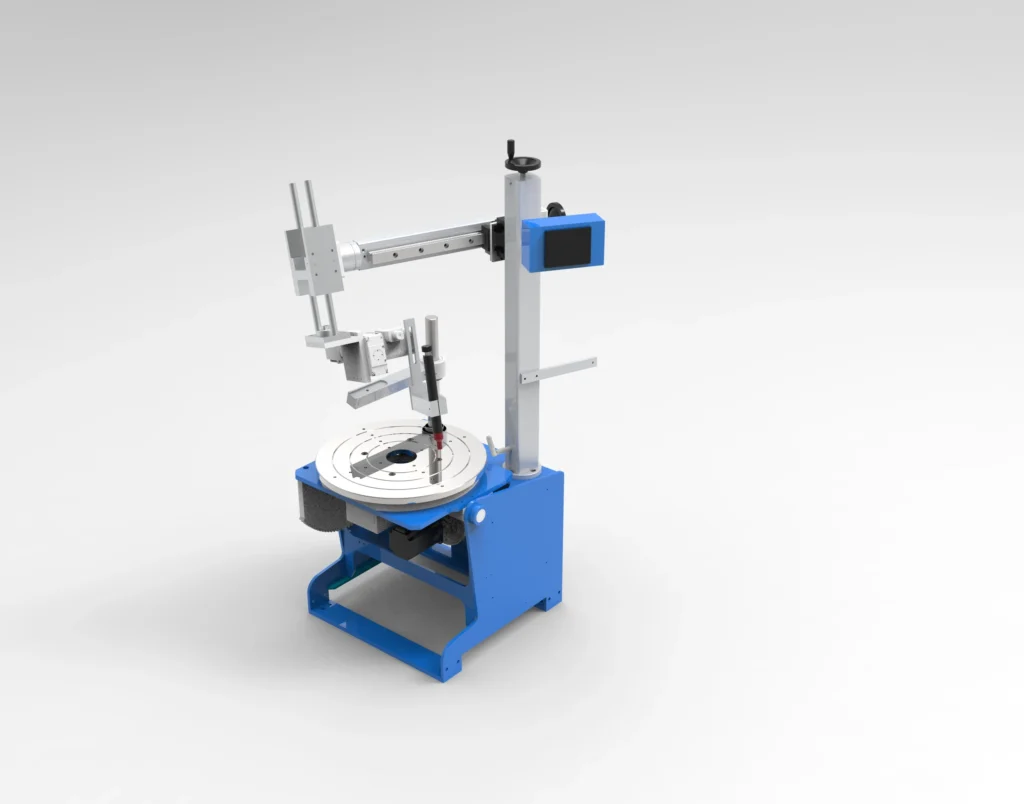

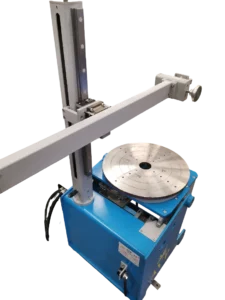

The WP rotary table is designed for rotating (turning) round weldments (vessels, pipes, flanges, etc.) and for positioning different weldments. A clamping tool is mounted on the work plate. Welding can be manual or, with the addition of a machine torch adjustment bracket, automatic.

The control unit has built-in rotation speed control, rotation direction change, foot switch and, as an option, an automatic 360º + welding cycle can be built in.

DESCRIPTION

GALLERY

Additional equipment

Description:

WP welding positioners are suitable for medium loads ranging from 100 kg to 800 kg. Rotation and tilting are motorized (tilting can also be manual).

rotation left/right, linear speed control,
control box , start/stop foot switch..

Same options can be applied as on VM 100.

Catalogue

OPEN THE CATALOG

Interested in a product?

Labelling systems:

	WP100	WP200	WP400	WP800
Nosilnost - kg	100	200	400	800
Premer plošče - mm	500			800
Vrtilna hitrost - obrat/min	0,2 - 5	0,1 - 2		0,1-1,5
Nazivna moč - kW	0,3	0,5	0,6	0,8
Nagib - °	105			120
Premer izvrtine - mm	/	/	Ø70	Ø80
Nazivna napetost - V/Hz	230/50
Dimenzije - mm	600x600x1000			1200x1200x900
Vrtilni moment / navor - Nm	100	620		1200
Nagibni moment / navor - Nm	800		1250	2500
