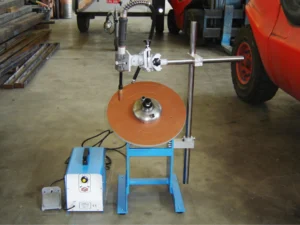

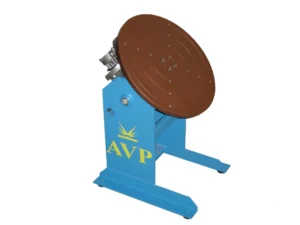

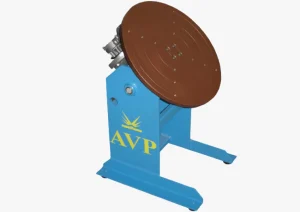

AVP rotary tables VM and positioners WP are universal devices for partial or full welding automation, typically used for MIG/MAG, TIG, and plasma welding processes. These devices simplify circular welding and help reduce production costs. The tables can be tilted, except for the WP-H models.

  • Centered borehole in the working plate
  • Left/right rotation with linear speed control

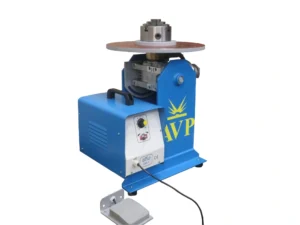

  • Control box with start/stop and momentary foot switch
DESCRIPTION
GALLERY

Options

  • Complete torch mount
  • 3-jaw chuck with mounting plate
  • Wired or wireless remote control
  • Variable-speed foot switch
  • Support gantry for a working height of 800 mm
  • 360° welding function with overlap
  • Segment welding with numerical programming
  • Touchscreen display

Interested in a product?

Specifications

VM 100
Load capacity - kg 100
Work table diameter - mm 400
Bore diameter - mm opcija
Rotation speed - obrat/min 0,3 - 6
Tilt angle / inclination - ° 0 - 90
Max. current load - A 300
Voltage rating - V 230
Frequency - Hz 50
Rotation torque - Nm 60
