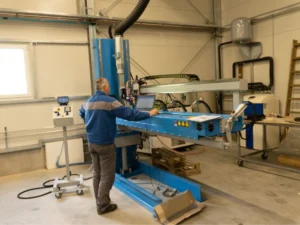

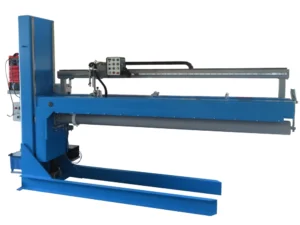

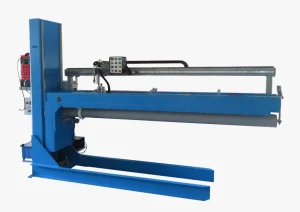

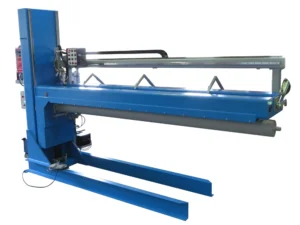

Longitudinal Seam Welder VSV-HYD

Welding machines/Longitudinal welding machines

This type is used for external butt welding. The hydraulic lift facilitates the working process and allows ergonomic work, regardless of the size of the weldment.

DESCRIPTION

GALLERY

Additional equipment

opis v izdelavi

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Equipment technical carateristics:

Welding process MIG/MAG, TIG, Plasma, Laser ...
Sheet thickness min.: 1 mm, max. 15 mm (depending on welding process)
Pipe diameter, welding from outside: min 180 mm
Minimum pipe diameter 1300 mm for welding from the inside
Welding length to order (1050/2050/3050/4050/5050 mm)
Welding speed 10 - 200 cm/min
Supply voltage 230 V, 50 Hz

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Catalogue

OPEN THE CATALOG

Interested in a product?

Dimensions

Welding speed -mm	1050	2050	3050
Welding speed - cm/min	10 - 200
Voltage rating - V	230 (50 Hz)
Minimum diameter* - mm	80	130	180
Maximum diameter* - mm	800	800 - 1300	1500
TIG
Product code	VSV-HYD 101	VSV-HYD 201	VSV-HYD 301
Material thickness - mm	0,5 - 3	0,6 - 3	0,8 - 3
MIG / MAG
Product code	VSV-HYD 111	VSV-HYD 211	VSV-HYD 311
Material thickness - mm	0,8 - 5	1 - 6	1 - 6
PLAZMA
Product code	VSV-HYD 131	VSV-HYD 231	VSV-HYD 331
Material thickness - mm	0,8 - 5	1 - 6	1 - 6
LASER
Product code	VSV-HYD 191	VSV-HYD 291	VSV-HYD 391
Material thickness - mm	0,5 - 2
