Description

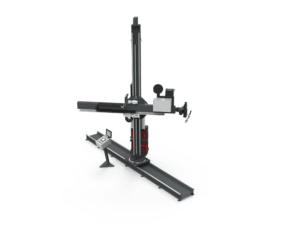

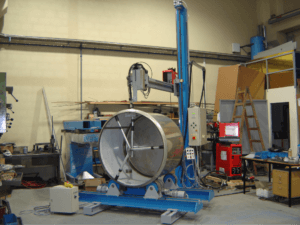

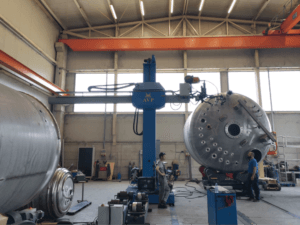

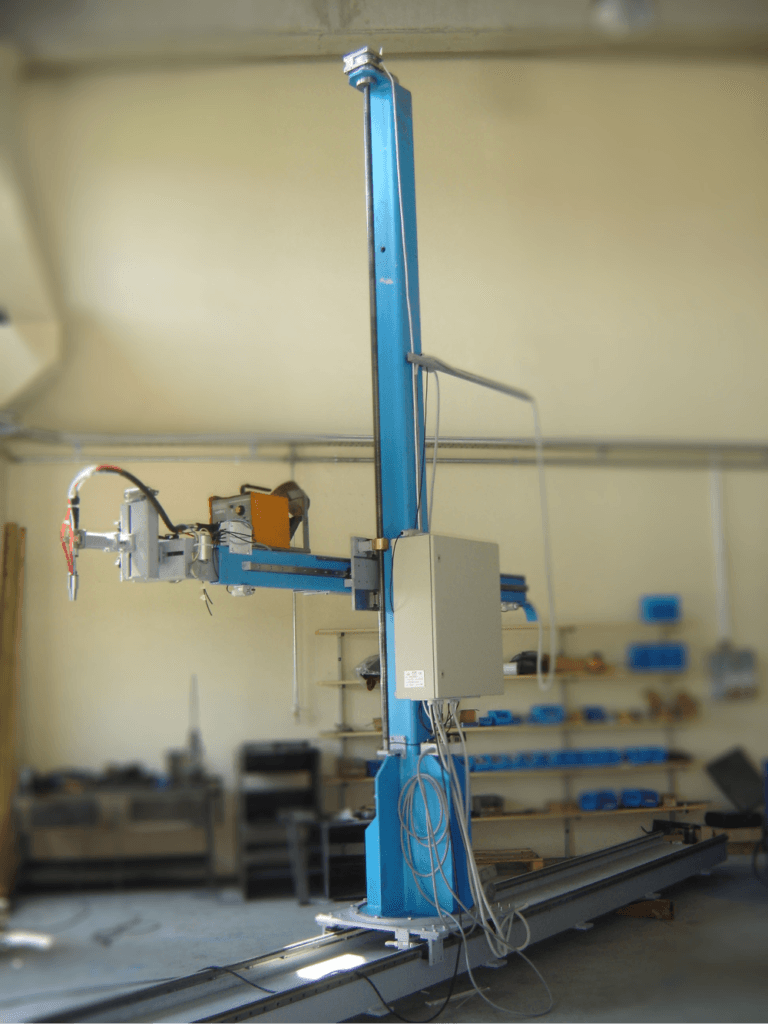

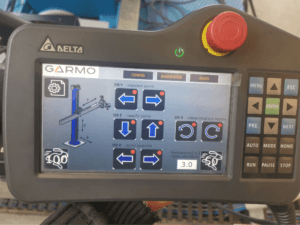

The machine consists of three main parts: the base unit, the column, and the arm. The base unit can move horizontally along a floor-mounted track (optional) or be directly and permanently fixed to the floor. Horizontal movement along the track can be motorized (with adjustable speed) or manual. The vertical column, together with the cross support, can be rotated manually around its axis. The arm’s movement along two axes (Z and Y), together with the torch and equipment, is motorized and speed-adjustable. This machine is typically used in combination with various types of turning devices and positioners.

1. Base Unit: Horizontal Carriage with Floor-Mounted Track

• Horizontal carriage movement is manual (optional: motorized movement)
• Track length made to order, with a standard length of 6 meters

2. Vertical Column

• Manually rotatable around its axis (optional: motorized rotation)
• Vertical movement driven by an electric motor at a constant speed
• The welding power source is also mounted on the column

3. Arm (Horizontal Beam)

• Vertical and horizontal movement
• Electric motor drive with adjustable speed
• Welding head for the selected welding process mounted at the end
• A two-axis actuator is usually installed on the arm for automatic torch movement, AVC, and oscillation
