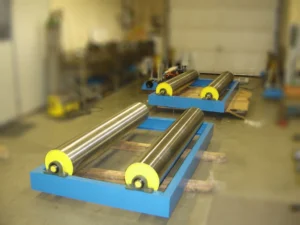

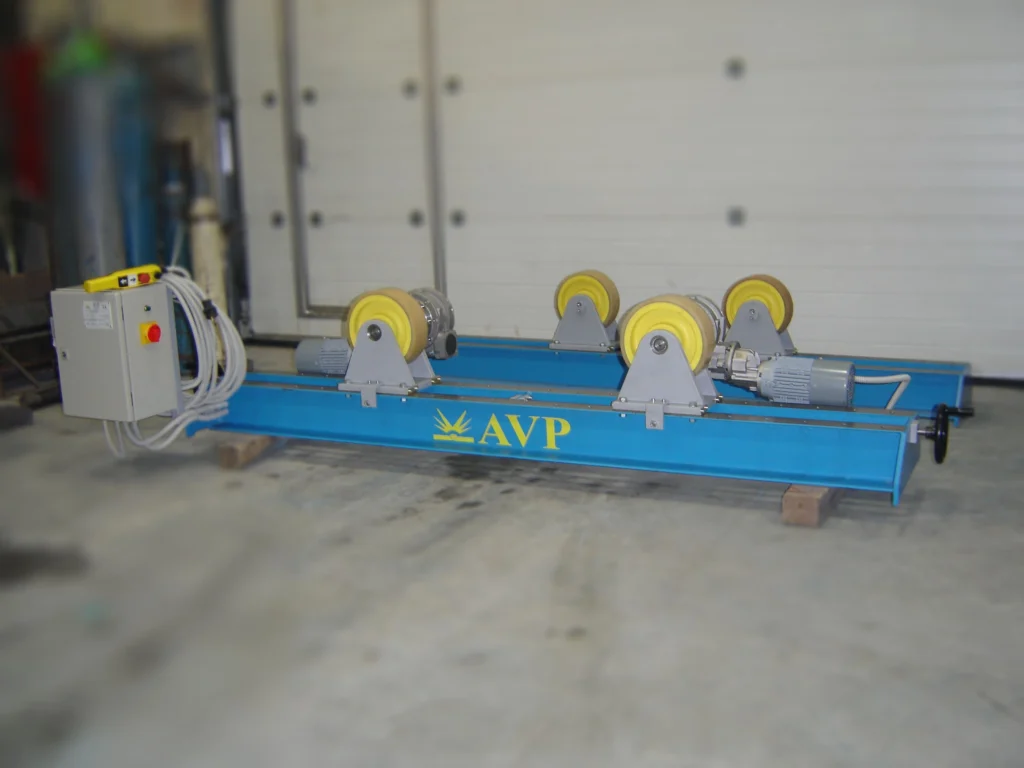

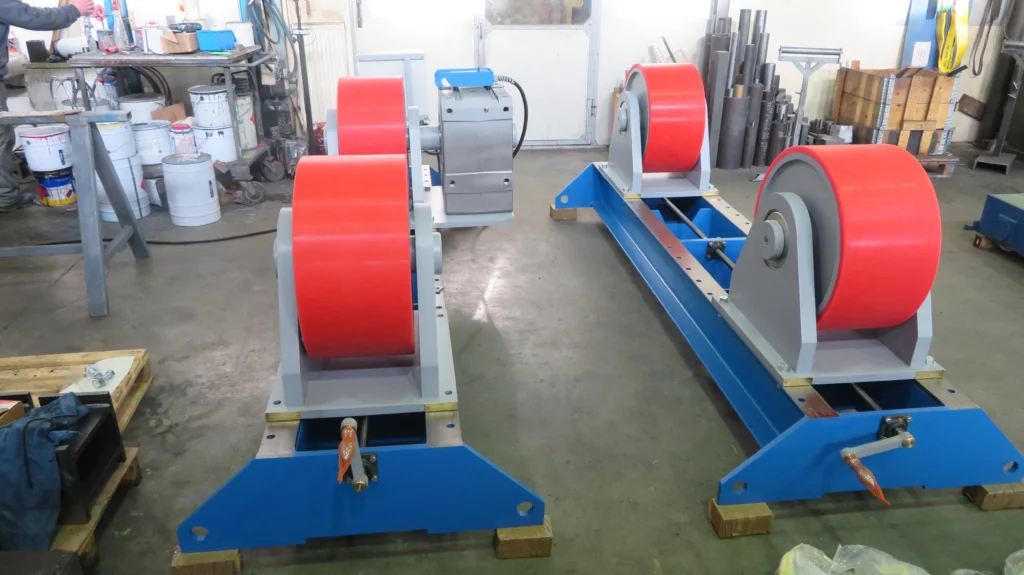

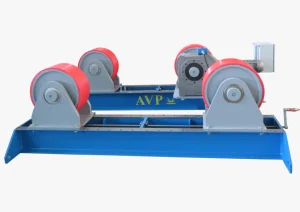

Turning devices are used to rotate objects (containers, pipes, etc.) during processes such as welding, cutting, painting and positioning. They consist of two independent units: a drive unit and a free unit. Both units can be moved longitudinally. The drive unit is equipped with one or two driven wheels, while the other unit has free wheels.
Combinations with multiple drive units or cardan-linked units are also available.

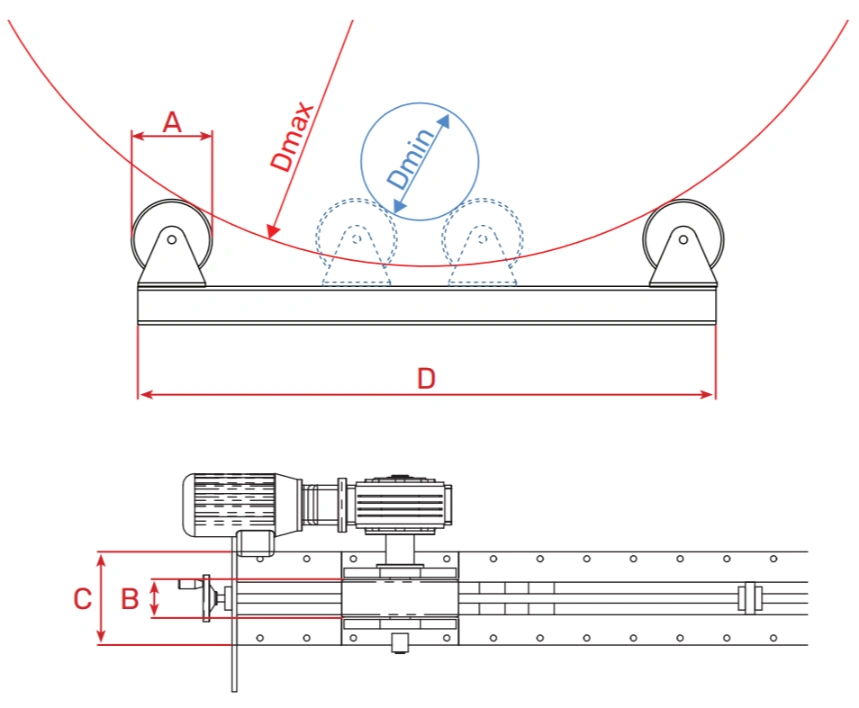

| ON 5t | ON 10t | ON 20t | ON 40t | ON 60t | ON 100t | ||
|---|---|---|---|---|---|---|---|
| A | mm | 300 | 300 | ||||
| B | 80 | 100 | 100 | 200 | 300 | 500 | |
| C | 300 | 300 | 400 | 500 | 800 | ||
| D | 2200 | 2800 | 3200 | ||||
| Dmin/Dmax | 200/3800 | 400/5500 | |||||
| Drive wheel torque | Nm | 600 | 1200 | 3000 | 5000 | 6000 | 15000 |
| Rotation speed | m/min | 0,1-2 | |||||
| Roller material | PU | ||||||
| Length - Drive unit torque | mm | 2500 | 3100 | 3600 | |||
| Length - Idler unit | 2200 | 2500 | 3100 | 3600 | |||
| Width - Drive unit | 500 | 700 | 800 | 900 | 1100 | ||
| Width - Idler unit | 300 | 400 | 500 | 600 | 800 | ||

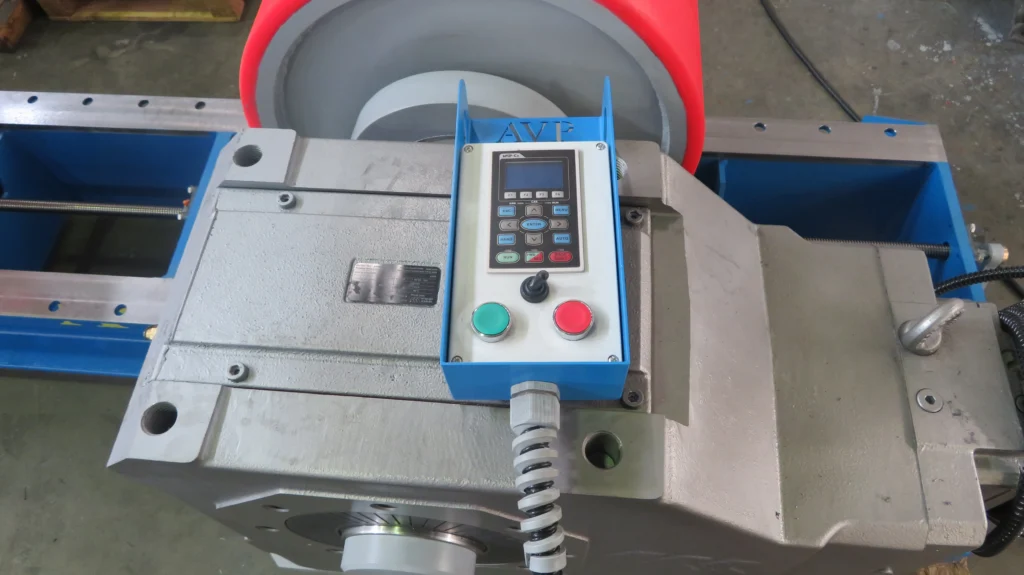

| Remote control | included | ||||||
